2022 KLX140L

Kawasaki 2022 KLX140L for Sale at Ultimate Kawasaki Ipswich in West Ipswich, QLD | Specifications and Review Information

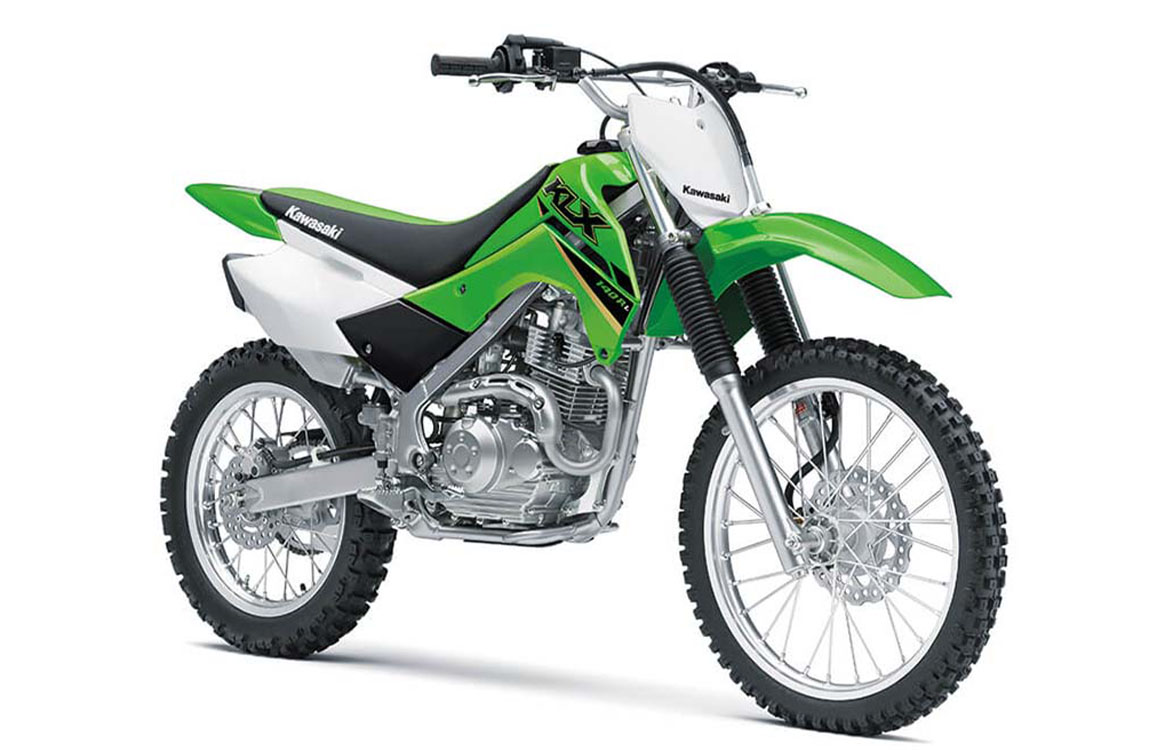

The 2022 Kawasaki KLX140R L off-road motorcycle features larger wheels (19F, 16R) and a 144cc confidence-inspiring engine, perfectly suited for everyday adventures.

144 CM3 AIR-COOLED ENGINE
The KLX140L air-cooled single-cylinder engine offers a lightweight power plant that is both simple (to operate and to maintain) and reliable. The 5-speed transmission and the manual clutch are easy-to-operate by young riders if moving up from auto clutch models. The KLX140L push button electric start and engine run-off controls are on the left handlebar.

ALUMINIUM SWING ARM
The aluminium swingarm on the KLX140L offers both light weight and increased strength. Like those on our KX machines, it features a hairline finish. KX racing-type chain adjusters allow precise adjustment of chain slack, helping to minimize drivetrain power transfer loss. KX-style wheels with strong, high-grade die-cast hubs offer the same durability as those found on our KX racers. Like our KX motocrossers, the KLX140L features lightweight RK EXCEL aluminum rims.

PETAL DISCS
While most "playbikes" feature a disc/drum combination, the KLX140L has disc brakes front and rear for a high level of braking performance. The 220 mm diameter front petal disc and twin-piston calliper offer strong, easy-to-control braking. The rear wheel is slowed by a 186 mm diameter petal disc gripped by single-piston caliper.

STEEL PERIMETER FRAME
KX-based perimeter frame made of high tensile steel contributes to the high offroad riding potential of the KLX140L.

HIGH PERFORMANCE SUSPENSION
The sturdy 33 mm telescopic front forks have the spring rates and damping settings to match the higher level performance of the KLX140L. To allow for its higher average speed, the KLX140L also features a rear shock with piggyback reservoir. Both the shock body and reservoir are aluminum. The shock has fully adjustable spring preload, 4-way compression damping and 22-way rebound damping. The high grade KLX140L rear shock can also be fitted to the KLX140 to upgrade the rear suspension.

WHEELS
The KLX140L wheels are 19" diameter front and 16" diameter rear for a low seat height. Larger than kid's bikes, and smaller and lighter than "full-size" play bikes, these KLX's are a perfect fit for youths. The seat height 800 mm is a nice compromise between the smaller kids bikes and full-size machines. The KLX140L is recommended for youths up to 170 cm tall and weighing more than 55 kg.
Model | KLX140L |
Engine Type | 4-stroke, Single |
Displacement | 144 cm³ |
Bore and Stroke | 58.0 x 54.4 mm |
Compression ratio | 9.5:1 |
Valve system | SOHC 2 valve |
Fuel system | Keihin PB20 |
Ignition | Digital DC-CDI |
Starting | Electric |
Transmission | 5-speed, return |
Clutch | Wet multi-disc, manual |
Wheel travel - front | 180 mm |
Wheel travel - rear | 180 mm |
Tyre Size-front | 70/100-19 |
Tyre Size-rear | 90/100-16 |
Suspension - front | 33 mm telescopic fork |
Suspension - rear | Uni-Trak linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping |
Brakes - front | 220 mm petal disc |
Brakes - rear | 186 mm petal disc |
L x W x H | 1,895 x 790 x 1,075 mm |
Wheelbase | 1,285 mm |
Ground clearance | 255 mm |
Seat height | 800 mm |
Fuel capacity | 5.8L |
Curb mass | 95kg |
Colour | Lime Green |
