2025 MULE PRO-DX DIESEL
Kawasaki 2025 MULE PRO-DX DIESEL for Sale at Ultimate Kawasaki Ipswich in West Ipswich, QLD | Specifications and Review Information
PACKED WITH PEFORMANCE

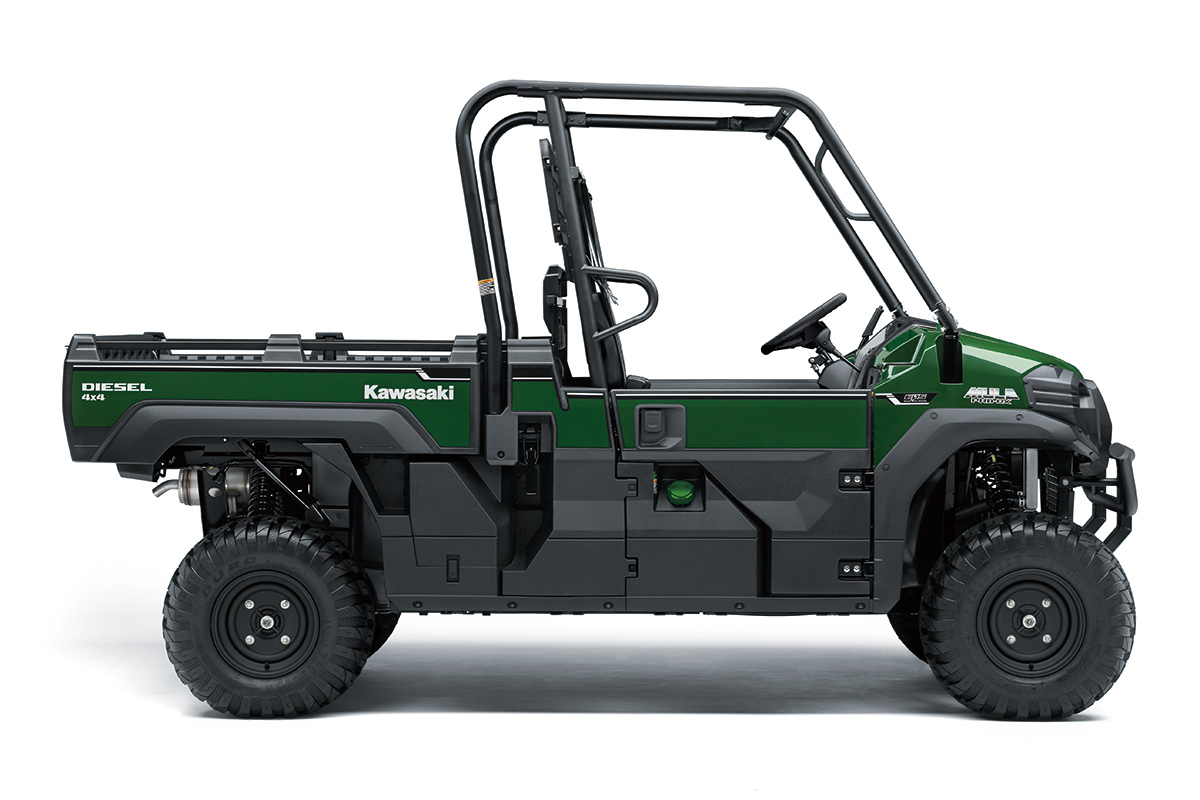

The MULE PRO-DX side x sides combine the rugged full-size MULE PRO chassis capability and versatility with the hardworking muscle of a diesel engine. This high capacity, three-passenger vehicle has the ability to move gear, tools, materials and people at the jobsite.
FEATURING:
- ROOMY CABIN WITH 3-PASSENGER SEATING
- 993 cc, 3-CYLINDER, DIESEL ENGINE
- MASSIVE 1.9 M² CARGO BED
- 1-TON (907 KG) TOWING CAPACITY
- INDEPENDENT FRONT AND REAR SUSPENSION
Timberline Green
CARGO BED
Ability to get the job done means flat-loading an entire wooden pallet onto the massive steel-based cargo bed, towing up to 907 kg, hauling up to 453 kg, and much, much more.
Actual product may vary from image
CAPACITY
Massive 1.9 m2 cargo bed with 453 kg capacity easily fits a standard wooden pallet allowing you to transport more with each load.
DURABLE STEEL
Steel-based cargo bed is built with enhanced durability while KQR cargo bed rails accommodate quick-release accessories.
TOWING CAPACITY
Two-inch hitch receiver with massive 907 kg towing capacity helps you get the job done faster with less effort.
POWER
993 cc, three-cylinder diesel engine with massive torque packs impressive pulling power for hauling and towing heavy loads across challenging terrain.
REAR DIFFERENTIAL
Dash-mounted 2WD/4WD and rear differential lock final drive selection switches allow you to easily and instantly optimise traction to match terrain conditions.
POWER DELIVERY
Engine torque and power are matched to the Continuously Variable Transmission (CVT) to offer usable power delivery throughout the rpm range to get you through those tough spots even when loaded to capacity.
ENGINE BRAKING
Continuously Variable Transmission (CVT) also contributes to smooth, consistent engine braking that helps to maintain reduced vehicle speed during descents.
Actual product may vary from image
DURABILITY
MULE PRO-DX EPS side x sides are strong where they need to be and flexible where it matters. Solid construction features a steel front bumper, steel diamond-plate cargo bed floor and floorboards for optimal durability.
Actual product may vary from image
FRONT BUMPER
All-steel front bumper provides protection for your bodywork.
FRAME
Ladder-type construction of the welded main frame optimises flex, rigidity and strength while intelligent design features help protect vital components.
WHEEL WELLS
Drive through rugged terrain in confidence as integrated inner wheel wells help protect the engine compartment from outside water, dust and debris.
COMFORT
Drive comfortably in a roomy cabin that offers generous leg, shoulder, and head clearance, along with refined ergonomics.
Actual product may vary from image
SUSPENSION
Independent front and rear suspension contribute to a smooth, comfortable ride while twin-tube shock absorbers provide superior bump absorption in rough low-speed situations as well as dampening higher-speed chatter.
ELECTRIC POWER STEERING
Speed-sensitive Electric Power Steering (EPS) technology provides all-day comfort and reduces driver fatigue by easing steering effort. Steering remains light and precise with minimal kickback. Adjustable tilt steering wheel comes standard.
Actual product may vary from image
CABIN
The cabin features a padded bench seat that fits three adults comfortably with generous shoulder and leg room. Automotive-style 3-point seatbelts are comfortable and easy to use. The 45-litre storage bin located under the seat provides convenient item storage.
Actual product may vary from image
ADDITIONAL VEHICLE FEATURES:
• Continuously Variable Transmission (CVT)
• Electrically selectable 2WD/4WD, dual-mode rear differential
• Speed-sensitive Electric Power Steering (EPS)
| Maximum Power | 18 kW {24 PS} / 3,600 rpm |
| Maximum Torque | 52 Nm {5.3 kgfm} / 2,400 rpm |
| Engine | 4-stroke In-Line 3-cylinder diesel |
| Displacement | 993 cc |
| Bore x Stroke | 74.0 x 77.0 mm |
| Compression Ratio | 23.5:1 |
| Valve System | OHV |
| Fuel System | In-line injection pump |
| Starting | Electric |
| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual range (high/low) CVT with reverse |
| Primary Reduction Ratio | 3.334 ~ 0.756 (belt converter) |
| Gear Ratio: Forward (High) | 1.952 (34/33 x 36/19) |
| Gear Ratio: Forward (Low) | 3.876 (45/22 x 36/19) |
| Gear Ratio: Reverse | 3.009 (27/17 x 36/19) |
| Final Reduction Ratio: Front | 6.382 (31/17 x 35/10) |
| Final Reduction Ratio: Rear | 6.245 (31/21 x 55/13) |
| Final Drive | 2WD/4WD, shaft, dual-mode differential |
| Frame | Ladder type, tubular steel |
| Front Suspension | Double wishbone |
| Rear Suspension | Double wishbone |
| Front Wheel Travel | 222 mm |
| Rear Wheel Travel | 217 mm (left), 220 mm (right) |
| Steering | Rack and pinion with Electric Power Steering |
| Rake | 4.4° |
| Steering Angle (L/R) | 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT) |
| Front Tyres | 26 x 9.00-12 4PR |
| Rear Tyres | 26 x 11.00-12 4PR |
| Front Brakes | Dual ø212 mm discs |
| Front Calipers | Two-piston |
| Rear Brake/s | Dual ø212 mm discs |
| Rear Caliper/s | Single-piston |
| Parking Brake | Dual discs (mechanical) |
| Dimensions (LxWxH) | 3,385 x 1,625 x 1,965 mm |
| Wheelbase | 2,345 mm |
| Road Clearance | 265 mm |
| Seat Height | 885 mm |
| Curb Weight* | 843 kg |
| Estimated Dry Weight** | 808 kg |
| Fuel Capacity | 30 litres |
| Tread Front / Rear | 1,385 mm / 1,315 mm |
| Turning Radius | 4.8 m |
| Cargo Bed Dimensions (LxWxH) | 1,375 x 1,355 x 280 mm |
| Cargo Bed Capacity | 453 kg |
| Seating Capacity | 3 |
| Vehicle Load Capacity | 714 kg |
| Towing Capacity | 907 kg |
| Lighting | 2x halogen headlights |
| Model Code | KDF1000ASSNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner's Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
